Industrial Bulldog 60

Industrial Bulldog 60

Artikelnummer 2-501060

Beskrivning

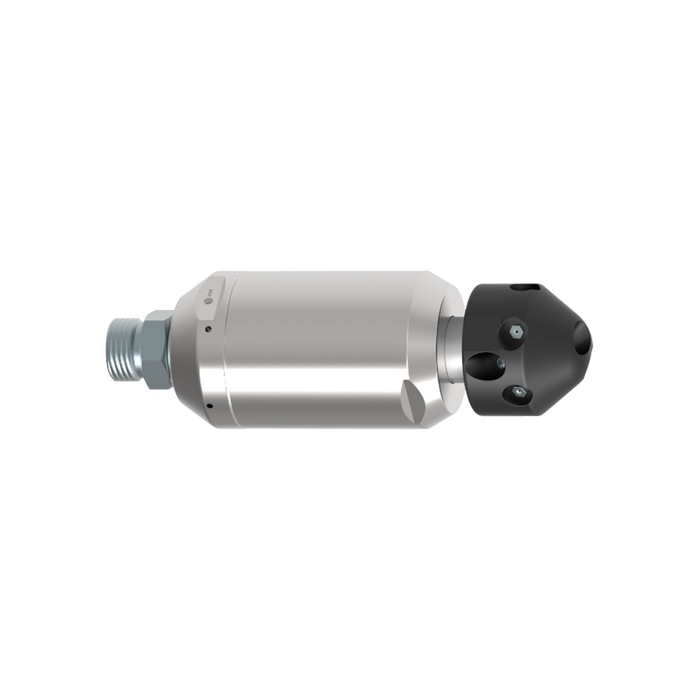

The enz® Bulldog® 1000 bar rotating nozzle is specially designed for internal pipe cleaning up to 1000 bar. It is suitable for removing even the most stubborn deposits from the pipe walls. Thanks to its clever bearing system, the Bulldog® is virtually leak-free, resulting in higher efficiency. In addition, the forward-facing cross-jet cuts out the material from the blocked pipe like a milling cutter.

Applications

  • Cleaning of heat exchangers in chemical and nuclear plants
  • General industrial cleaning
  • All in one nozzle: unplugger, polisher, universal

Teknisk data

Artikelnummer
Anslutning
Rördimension
Min. L/min vid 100 bar
Främre dysor
Rotationsdysor
Längd x diameter
Vikt
Max tryck
2-501060 M24 x 1.5 65 - 150 mm 40 l/min - 80°: 6 x M6 186 x 60 mm 2,41 kg 1000 bar
2-501060N 1/2" NPT 65 - 150 mm 40 l/min - 80°: 6 x M6 186 x 60 mm 2,41 kg 1000 bar
2-504060 M24 x 1.5 65 - 150 mm 46 l/min - 80°: 3 x M6, 45: 3 x M6 186 x 60 mm 2,41 kg 1000 bar
2-504060N 1/2" NPT 65 - 150 mm 46 l/min - 80°: 3 x M6, 45: 3 x M6 186 x 60 mm 2,41 kg 1000 bar
2-506060 M24 x 1.5 65 - 150 mm 50 l/min 2 x M6 80°: 3 x M6, 45: 3 x M6 186 x 60 mm 2,41 kg 1000 bar
2-506060N 1/2" NPT 65 - 150 mm 50 l/min 2 x M6 80°: 3 x M6, 45: 3 x M6 186 x 60 mm 2,41 kg 1000 bar
