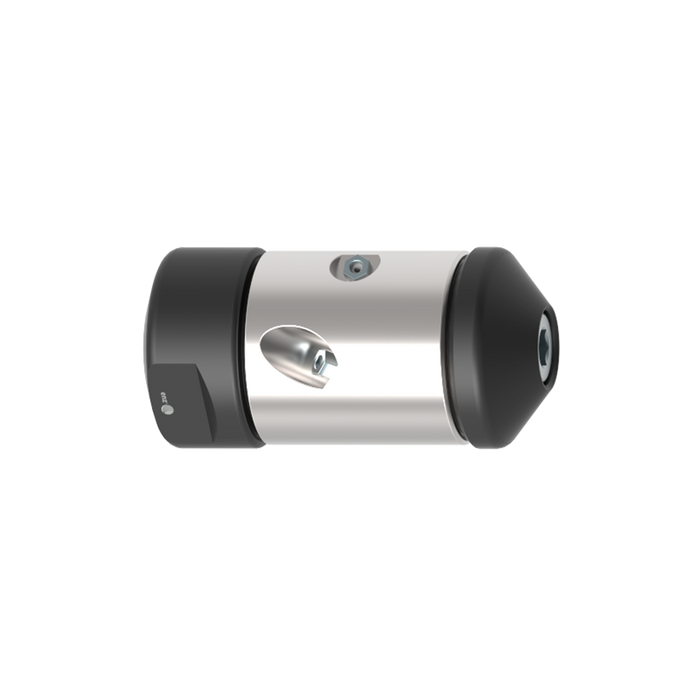

Industrial KBR
Artikelnummer 2-050404
Beskrivning
The maximum pressure rotating nozzles enz® are most efficient in cleaning the inside wall of pipes with a pressure up to 1000 bar. They are most appropriate to remove harder deposits from the pipe walls and are for tube and pipe cleaning.
Applications
- Cleaning of heat exchangers in chemical and nuclear plants and for general industrial pipe cleaning
Teknisk data
| Artikelnummer |
Anslutning
|
Rördimension
|
Min. L/min vid 100 bar
|
Rotationsdysor
|
Längd x diameter
|
Vikt
|
Max tryck
|
|---|---|---|---|---|---|---|---|
| 2-050404 | M24 x 1.5 | 42 - 55 mm | 40 l/min | 45°: 2 x M6, 90°: 2 x M6 | 106 x 40 mm | 0,70 kg | 1000 bar |
| 2-050504 | M24 x 1.5 | 55 - 77 mm | 40 l/min | 45°: 2 x M6, 90°: 2 x M6 | 121 x 50 mm | 1,25 kg | 1000 bar |
