MJ4
Artikelnummer 2-55004001
Beskrivning

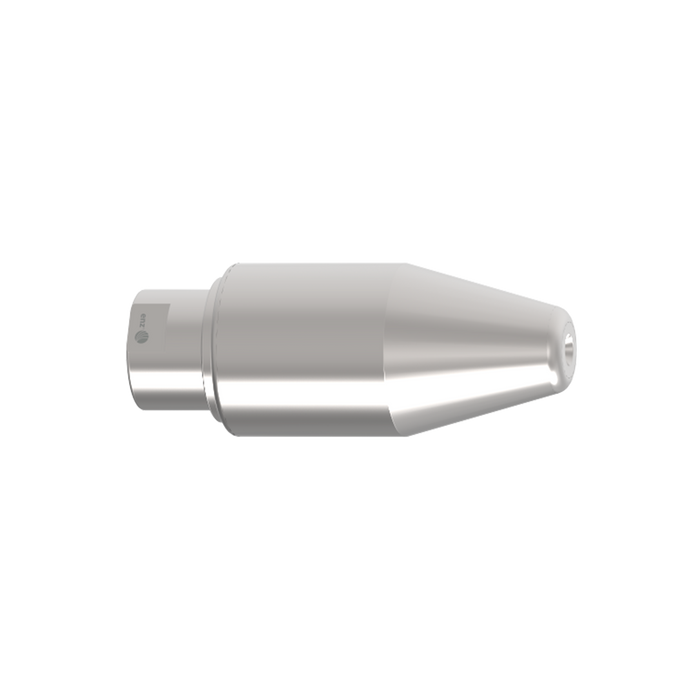

The rotating enz® nozzle for cleaning surfaces is remarkable for its high efficiency. It outperformers conventional flat jet or round jet nozzles with a large margin.
Applications
- To remove deposits of concrete-slurry, cleaning of store fronts, steps, walls, traffic signboards etc.
Additional info
- Other thread types are available on request.
- The MJ4ST can accommodate water temperatures of up to 150°C.
Teknisk data
| Artikelnummer |
Anslutning
|
Min. L/min vid 100 bar
|
Rotationsdysor
|
Längd x diameter
|
Vikt
|
Max tryck
|
|---|---|---|---|---|---|---|
| 2-55004001 | 3/8" BSPP | 5,5 l/min | 0.6 - 2.8 (22°) | 109 x 43 mm | 0,50 kg | 500 bar |
| 2-55004002 | 3/8" NPT | 5,5 l/min | 0.6 - 2.8 (22°) | 109 x 43 mm | 0,50 kg | 500 bar |
| 2-55004003 | 1/2" BSPP | 5,5 l/min | 0.6 - 2.8 (22°) | 109 x 43 mm | 0,50 kg | 500 bar |
| 2-55004004 | 1/2" NPT | 5,5 l/min | 0.6 - 2.8 (22°) | 109 x 43 mm | 0,50 kg | 500 bar |
| 2-55004005 | 1/4" BSPP | 5,5 l/min | 0.6 - 2.8 (22°) | 109 x 43 mm | 0,50 kg | 500 bar |
| 2-55004011 | 9/16" x 18 UNF LH | 5,5 l/min | 0.6 - 2.8 (22°) | 109 x 43 mm | 0,50 kg | 500 bar |
| 2-55004012 | M14 x 1.5 LH | 5,5 l/min | 0.6 - 2.8 (22°) | 109 x 43 mm | 0,50 kg | 500 bar |
| 2-55004015 | M26 x 1.5 | 5,5 l/min | 0.6 - 2.8 (22°) | 109 x 43 mm | 0,50 kg | 500 bar |
