Guiding Nozzles
Artikelnummer 2-17028A-101
Description

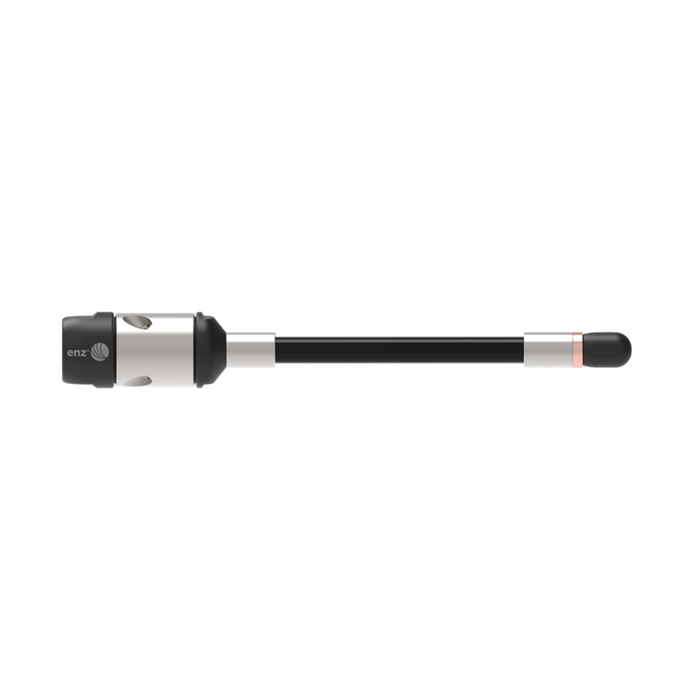

enz® guided nozzle – for precision cleaning of pipe inlets
The enz® guided nozzle is specially developed for targeted cleaning of pipe inlets and branch connections. It is used to locate and clean connections in underground pipes, helping to avoid unnecessary cleaning through house connections.
The flexible hose with the nozzle head allows easy and precise guidance into lateral connections – ensuring fast, effective, and safe operation.
Applications
-
Removal of loose rubble, stones, and gravel
-
Elimination of soft deposits and sediment
-
Ideal for municipal cleaning, sewer maintenance, and excavation work
With the enz® guided nozzle, you achieve precise cleaning performance and optimal control – even in challenging pipe systems.
Teknisk data
| Artikelnummer |
Anslutning
|
Rördimension
|
Min. L/min vid 100 bar
|
Bakre dysor
|
Rotationsdysor
|
Längd x diameter
|
Vikt
|
Max tryck
|
|---|---|---|---|---|---|---|---|---|
| 2-17028A-101 | 1/4" | 30 - 100 mm | 11 l/min | - | 4 x M4 | 209 x 28 mm | 0,26 kg | 350 bar |
| 2-17028B-101 | 3/8" | 30 - 100 mm | 11 l/min | - | 4 x M4 | 209 x 28 mm | 0,26 kg | 350 bar |
| 2-17028C-101 | 1/2" | 30 - 100 mm | 11 l/min | - | 4 x M4 | 209 x 28 mm | 0,25 kg | 350 bar |
| 2-17040A-001 | 1/2" | 70 - 150 mm | 40 l/min | 3 x M6 | 4 x M6 | 265 x 44 mm | 0,66 kg | 350 bar |
| 2-17044AE-001 | 1/2" | 70 - 150 mm | 40 l/min | 3 x M6 | 4 x M4 | 267 x 44 mm | 0,7 kg | 350 bar |
| 2-17050-001 | 1/2" | 60 - 150 mm | 50 l/min | 6 x M8 | - | 267 x 48 mm | 0,95 kg | 350 bar |
