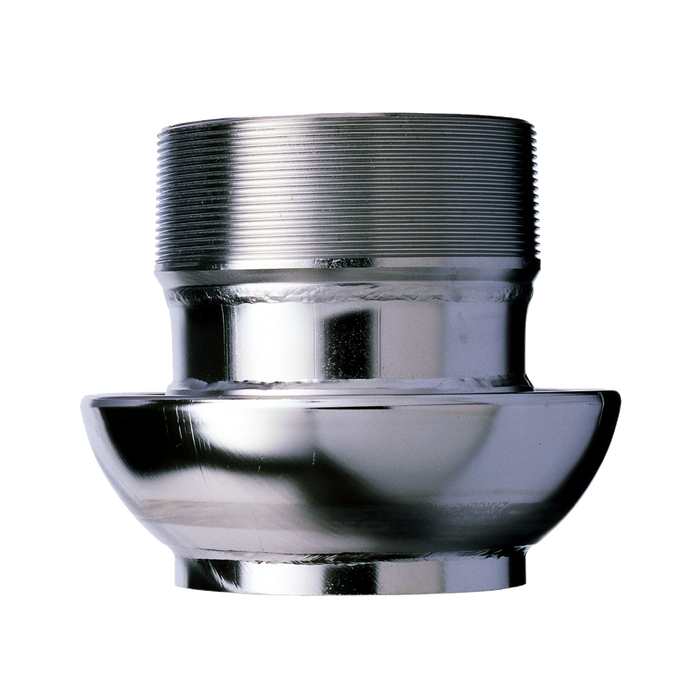

KVG hankoppling med gänga

Artikelnummer 9-1621028

Description

M42 is a complete range of quick couplings for safe
and speedy handling of pipes and hose systems. The
couplings are produced in several dimensions and
are available in the following materials:
• Aluminium
• Stainless steel
• Galvanised steel

The construction makes the couplings extremely
user-friendly. It guarantees total tightness for both
pressure and vacuum and can be used for anything
that can be pumped, blown, pressed or sucked
through pipes and hoses.
Maximum working pressure: Liquids 12.5 bar.
Compressed air 8 bar. Vacuum-tight.

Teknisk data

Artikelnummer
Anslutning
Info
9-1621028 48 - R50 Galvaniserat stål
9-1631415 48 - R50 Rostfritt stål
9-1621027 48 (med styrstos) - R50 Galvaniserat stål
9-1631423 76 - R50 Rostfritt stål
9-1621069 76 - R65 Galvaniserat stål
9-1621077 76 - R80 Galvaniserat stål
9-1631449 76 - R80 Rostfritt stål
9-91621076 76 (med styrstos) - R80 Galvaniserat stål
9-1621085 102 - R100 Galvaniserat stål
9-1631458 102 - R100 Rostfritt stål
9-1621084 102 (med styrstos) - R100 Galvaniserat stål
9-1621093 133 - R125 Galvaniserat stål
9-1631461 133 - R125 Rostfritt stål
9-1621095 152 - R150 Galvaniserat stål
9-1631470 152 - R150 Rostfritt stål
9-1621178 76 - G80 Galvaniserat stål
9-1621086 102 - G100 Galvaniserat stål
