MJ3
Artikelnummer 2-55003001
Description

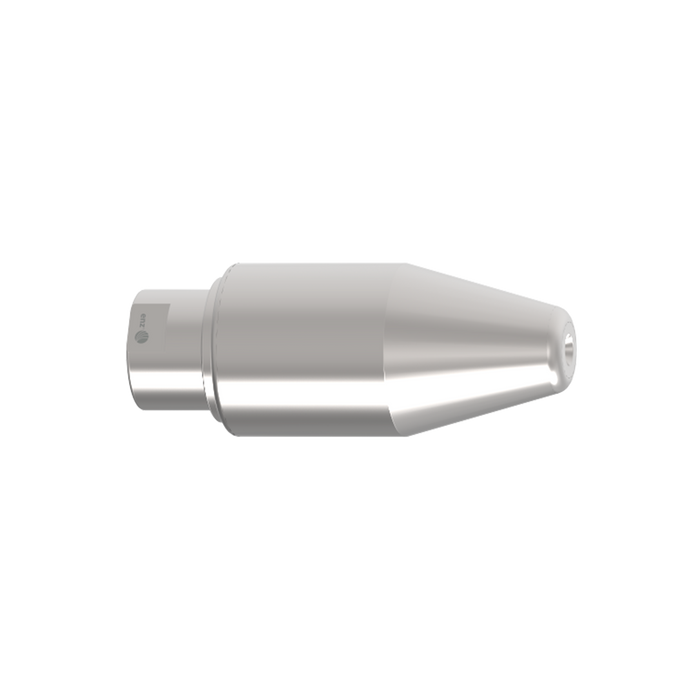

The rotating enz® nozzle for cleaning surfaces is remarkable for its high efficiency. It outperformers conventional flat jet or round jet nozzles with a large margin.
Applications
- To remove deposits of concrete-slurry, cleaning of store fronts, steps, walls, traffic signboards etc.
Additional info
- Other thread types are available on request.
- The MJ4ST can accommodate water temperatures of up to 150°C.
Teknisk data
| Artikelnummer |
Anslutning
|
Min. L/min vid 100 bar
|
Rotationsdysor
|
Längd x diameter
|
Vikt
|
Max tryck
|
|---|---|---|---|---|---|---|
| 2-55003001 | 3/8" BSPP | 6,5 l/min (1.7 US GPM) | 0.6 - 2.8 (20°) | 109 x 43 mm | 0,66 kg | 800 bar |
| 2-55003002 | 3/8" NPT | 6,5 l/min (1.7 US GPM) | 0.6 - 2.8 (20°) | 109 x 43 mm | 0,66 kg | 800 bar |
| 2-55003003 | 1/2" BSPP | 6,5 l/min (1.7 US GPM) | 0.6 - 2.8 (20°) | 109 x 43 mm | 0,66 kg | 800 bar |
| 2-55003004 | 1/2" NPT | 6,5 l/min (1.7 US GPM) | 0.6 - 2.8 (20°) | 109 x 43 mm | 0,66 kg | 800 bar |
| 2-55003005 | 1/4" BSPP | 6,5 l/min (1.7 US GPM) | 0.6 - 2.8 (20°) | 109 x 43 mm | 0,66 kg | 800 bar |
| 2-55003011 | 9/16" x 18 UNF LH | 6,5 l/min (1.7 US GPM) | 0.6 - 2.8 (20°) | 109 x 43 mm | 0,66 kg | 800 bar |
| 2-55003012 | M14 x 1.5 LH | 6,5 l/min (1.7 US GPM) | 0.6 - 2.8 (20°) | 109 x 43 mm | 0,66 kg | 800 bar |
| 2-55003013 | M14 x 1.5 RH | 6,5 l/min (1.7 US GPM) | 0.6 - 2.8 (20°) | 109 x 43 mm | 0,66 kg | 800 bar |
| 2-55003017 | M26 x 1.5 | 6,5 l/min (1.7 US GPM) | 0.6 - 2.8 (20°) | 109 x 43 mm | 0,66 kg | 800 bar |
