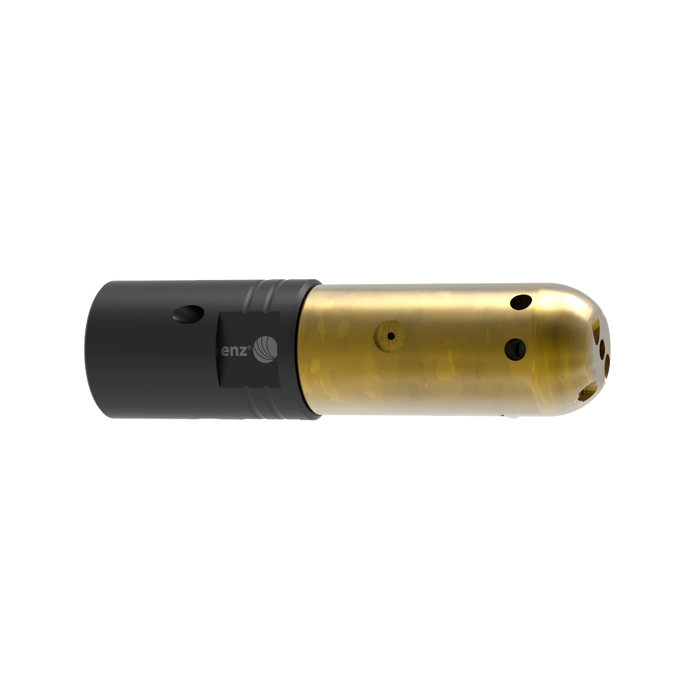

UC13

Name: UC13
Brand: ENZ
SKU: 2-06013-18-2
Availability: InStock

Artikelnummer 2-06013-18-2

Antal

Description

Munstycket UC enz® (med bromsstråle) är avsett för industriell rengöring av värmeväxlare och helt igensatta rör.

Tvärstrålen, som är riktad framåt, skär av materialet i det helt igensatta röret som en fräs. Samtidigt rengör 2 radiella strålar på 60° - 90° rörväggen. Genom samma effekt spolas det bortskurna materialet bort. Tvärstrålen ger upphov till en reaktionskraft som i många fall gör det nödvändigt att montera munstycket på en lans. UC-munstyckena finns tillgängliga med eller utan tryckkraft. Genom allt detta har UC-munstycket blivit ett verktyg för universell användning.

Tillämpningar
- För industriell rengöring av värmeväxlare och helt igensatta rör

Teknisk data

Connection 1/8" bspp

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 4.2 - 4.8 us gpm

Min water flow at 1450 psi 16 / 18 l/min (4.2 - 4.8 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/8" npt

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 4.2 us gpm

Min water flow at 1450 psi 16 l/min (4.2 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 bar

Max pressure us 14500 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/8" npt

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 7.4 us gpm

Min water flow at 1450 psi 28 l/min (7.4 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 bar

Max pressure us 14500 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/8" bspp

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 7.1 - 9.5 us gpm

Min water flow at 1450 psi 27 / 36 l/min (7.1 - 9.5 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/4" x 28unf

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 4.2 - 4.8 us gpm

Min water flow at 1450 psi 16 / 18 l/min (4.2 - 4.8 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/4" x 28unf lh

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 4.2 - 4.8 us gpm

Min water flow at 1450 psi 16 / 18 l/min (4.2 - 4.8 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/4" x 28unf lh

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 7.4 - 9.5 us gpm

Min water flow at 1450 psi 28 / 36 l/min (7.4 - 9.5 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/4" x 28unf

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 7.4 - 9.5 us gpm

Min water flow at 1450 psi 28 / 36 l/min (7.4 - 9.5 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 3/8" x 24unf

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 4.2 - 4.8 us gpm

Min water flow at 1450 psi 16 / 18 l/min (4.2 - 4.8 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 3/8" x 24unf lh

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 4.2 - 4.8 us gpm

Min water flow at 1450 psi 16 / 18 l/min (4.2 - 4.8 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 3/8" x 24unf lh

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 7.4 - 9.5 us gpm

Min water flow at 1450 psi 28 / 36 l/min (7.4 - 9.5 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 3/8" x 24unf

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 7.4 - 9.5 us gpm

Min water flow at 1450 psi 28 / 36 l/min (7.4 - 9.5 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/8" bspp

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 6.3 - 7.9 us gpm

Min water flow at 1450 psi 24 / 30 l/min (6.3 - 7.9 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/8" npt

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 6.3 us gpm

Min water flow at 1450 psi 24 l /min (6.3 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 bar

Max pressure us 14500 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/8" npt

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 11 us gpm

Min water flow at 1450 psi 42 l/min (11 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 bar

Max pressure us 14500 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/8" bspp

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 11 - 14 us gpm

Min water flow at 1450 psi 42 / 52 l/min (11 - 14 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/4" x 28unf

Front jets 45°: 2 x 0.50 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 6.3 - 7.9 us gpm

Min water flow at 1450 psi 24 / 30 l/min (6.3 - 7.9 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.50 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/4" x 28unf lh

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 6.3 - 7.9 us gpm

Min water flow at 1450 psi 24 / 30 l/min (6.3 - 7.9 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/4" x 28unf lh

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 11 - 14 us gpm

Min water flow at 1450 psi 42 / 52 l/min (11 - 14 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 1/4" x 28unf

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 11 - 14 us gpm

Min water flow at 1450 psi 42 / 52 l/min (11 - 14 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 3/8" x 24unf

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 6.3 - 7.9 us gpm

Min water flow at 1450 psi 24 / 30 l/min (6.3 - 7.9 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 3/8" x 24unf lh

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 6.3 - 7.9 us gpm

Min water flow at 1450 psi 24 / 30 l/min (6.3 - 7.9 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets -

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 3/8" x 24unf lh

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 11 - 14 us gpm

Min water flow at 1450 psi 42 / 52 l/min (11 - 14 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Connection 3/8" x 24unf

Front jets 45°: 2 x 0.70 mm

Length x diameter 48 x 13 mm

Length x diameter us 1.89 x 0.51''

Min water flow at 100 bar us 11 - 14 us gpm

Min water flow at 1450 psi 42 / 52 l/min (11 - 14 us gpm)

Pipe dimension 16 - 20 mm (0.6" - 0.8")

Pipe dimension us 0.6" - 0.8"

Rear jets 3 x 0.60 mm

Rotating jets 90°: 2 x 0.70 mm

Max pressure 1000 / 1500 bar

Max pressure us 14500 / 21755 psi

Weight 0,03 kg

Weight us 0.066 lbs

Teknisk data

Artikelnummer	Anslutning	Rördimension	Min. L/min vid 100 bar	Bakre dysor	Främre dysor	Rotationsdysor	Längd x diameter	Vikt	Max tryck
2-06013-18-2	1/8" BSPP	16 - 20 mm (0.6" - 0.8")	16 / 18 l/min (4.2 - 4.8 US GPM)	-	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-18-N-1	1/8" NPT	16 - 20 mm (0.6" - 0.8")	16 l/min (4.2 US GPM)	-	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 bar
2-06013-18-NS-1	1/8" NPT	16 - 20 mm (0.6" - 0.8")	28 l/min (7.4 US GPM)	3 x 0.60 mm	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 bar
2-06013-18-S-2	1/8" BSPP	16 - 20 mm (0.6" - 0.8")	27 / 36 l/min (7.1 - 9.5 US GPM)	3 x 0.60 mm	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-18- UA-2	1/4" x 28UNF	16 - 20 mm (0.6" - 0.8")	16 / 18 l/min (4.2 - 4.8 US GPM)	-	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-18- UAL-2	1/4" x 28UNF LH	16 - 20 mm (0.6" - 0.8")	16 / 18 l/min (4.2 - 4.8 US GPM)	-	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-18- UALS-2	1/4" x 28UNF LH	16 - 20 mm (0.6" - 0.8")	28 / 36 l/min (7.4 - 9.5 US GPM)	3 x 0.60 mm	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-18- UAS-2	1/4" x 28UNF	16 - 20 mm (0.6" - 0.8")	28 / 36 l/min (7.4 - 9.5 US GPM)	3 x 0.60 mm	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-18- UB-2	3/8" x 24UNF	16 - 20 mm (0.6" - 0.8")	16 / 18 l/min (4.2 - 4.8 US GPM)	-	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-18- UBL-2	3/8" x 24UNF LH	16 - 20 mm (0.6" - 0.8")	16 / 18 l/min (4.2 - 4.8 US GPM)	-	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-18- UBLS-2	3/8" x 24UNF LH	16 - 20 mm (0.6" - 0.8")	28 / 36 l/min (7.4 - 9.5 US GPM)	3 x 0.60 mm	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-18- UBS-2	3/8" x 24UNF	16 - 20 mm (0.6" - 0.8")	28 / 36 l/min (7.4 - 9.5 US GPM)	3 x 0.60 mm	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30-2	1/8" BSPP	16 - 20 mm (0.6" - 0.8")	24 / 30 l/min (6.3 - 7.9 US GPM)	-	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30-N-1	1/8" NPT	16 - 20 mm (0.6" - 0.8")	24 l /min (6.3 US GPM)	-	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 bar
2-06013-30-NS-1	1/8" NPT	16 - 20 mm (0.6" - 0.8")	42 l/min (11 US GPM)	-	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 bar
2-06013-30-S-2	1/8" BSPP	16 - 20 mm (0.6" - 0.8")	42 / 52 l/min (11 - 14 US GPM)	3 x 0.60 mm	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30- UA-2	1/4" x 28UNF	16 - 20 mm (0.6" - 0.8")	24 / 30 l/min (6.3 - 7.9 US GPM)	-	45°: 2 x 0.50 mm	90°: 2 x 0.50 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30- UAL-2	1/4" x 28UNF LH	16 - 20 mm (0.6" - 0.8")	24 / 30 l/min (6.3 - 7.9 US GPM)	-	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30- UALS-2	1/4" x 28UNF LH	16 - 20 mm (0.6" - 0.8")	42 / 52 l/min (11 - 14 US GPM)	3 x 0.60 mm	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30- UAS-2	1/4" x 28UNF	16 - 20 mm (0.6" - 0.8")	42 / 52 l/min (11 - 14 US GPM)	3 x 0.60 mm	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30- UB-2	3/8" x 24UNF	16 - 20 mm (0.6" - 0.8")	24 / 30 l/min (6.3 - 7.9 US GPM)	-	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30- UBL-2	3/8" x 24UNF LH	16 - 20 mm (0.6" - 0.8")	24 / 30 l/min (6.3 - 7.9 US GPM)	-	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30- UBLS-2	3/8" x 24UNF LH	16 - 20 mm (0.6" - 0.8")	42 / 52 l/min (11 - 14 US GPM)	3 x 0.60 mm	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar
2-06013-30- UBS-2	3/8" x 24UNF	16 - 20 mm (0.6" - 0.8")	42 / 52 l/min (11 - 14 US GPM)	3 x 0.60 mm	45°: 2 x 0.70 mm	90°: 2 x 0.70 mm	48 x 13 mm	0,03 kg	1000 / 1500 bar

Select Language

UC13

Description

Teknisk data

Teknisk data
