URX
Artikelnummer 2-525019A
Description

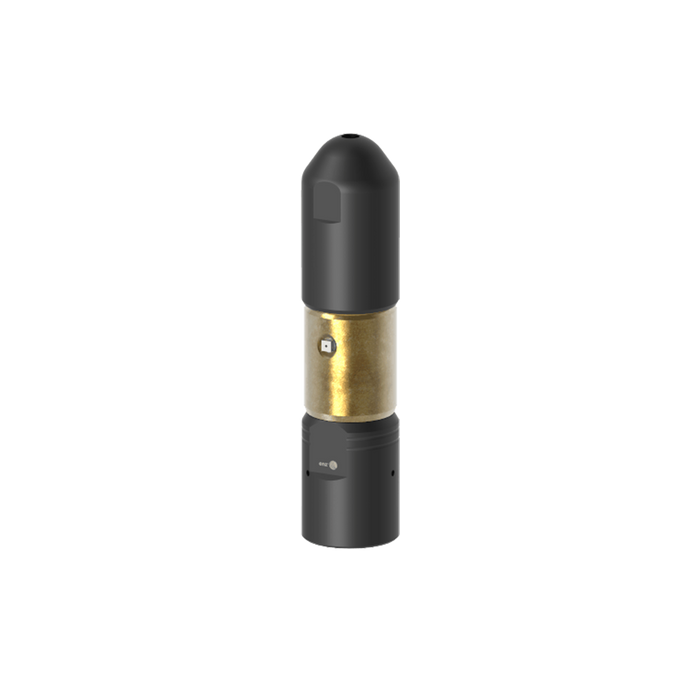

The maximum pressure rotating nozzles enz® are most efficient in cleaning the inside wall of tubes with a pressure up to 2500 bar. They are most appropriate to remove harder deposits from the tube walls. The rotational speed of the nozzle is controlled by a magnetic brake.
Characteristics
• Speed control
• Low leakage
• Durability
Applications
• Cleaning of heat exchangers in chemical and nuclear plants and for general industrial pipe cleaning
Characteristics
• Speed control
• Low leakage
• Durability
Applications
• Cleaning of heat exchangers in chemical and nuclear plants and for general industrial pipe cleaning
Teknisk data
| Artikelnummer |
Anslutning
|
Rördimension
|
Min. L/min vid 100 bar
|
Främre dysor
|
Rotationsdysor
|
Längd x diameter
|
Vikt
|
Max tryck
|
|---|---|---|---|---|---|---|---|---|
| 2-525019A | 9/16" UNF LH | 23 - 34 mm (0.9" - 1.3") | 28 l/min (7.4 US GPM) | * | 2 x M3 | 80 x 19 mm | 0.14 kg | 2500 bar |
| 2-525019B | M14 x 1.5 LH | 23 - 34 mm (0.9" - 1.3") | 28 l/min (7.4 US GPM) | * | 2 x M3 | 80 x 19 mm | 0.14 kg | 2500 bar |
